Raising and Lowering Deck

The deck lift handle allows the deck to be placed into the highest position for transporting.

NOTE: If the deck lift handle is pulled back beyond the audible click, the mower deck will not lock into position.

1. Park machine safely. (See Parking Safely in the Safety section.)

2.

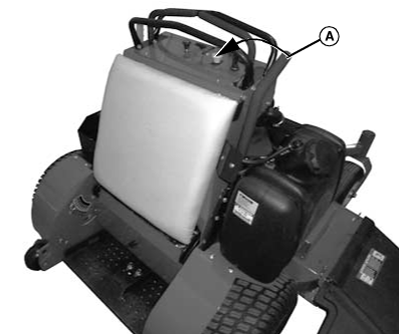

   TCAL43598-UN-26MAR13

   To raise and lock the mower deck, pull the deck lift handle (A) until an audible click is heard.

---




3. NOTE: The mower deck will only lower to the set height (B). (See Adjusting Mower Deck Height-of-Cut)

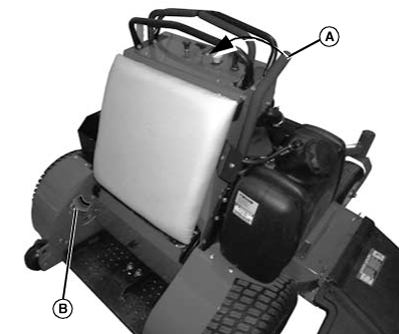

   TCAL43599-UN-26MAR13

   To unlock and lower the mower deck, pull the deck lift handle back from the locked position, and slowly lower the mower deck.

---
