Adjusting Mower Deck Anti-Scalp Wheels

NOTE: The flattest cut can be achieved by having all anti-scalp wheels adjusted off the ground. Check anti-scalp wheel adjustments each time the mower deck cutting height is changed.

It is recommended that all anti-scalp wheels be kept off the ground to minimize scuffing.

  1. Inflate tires to correct pressure.

  2. Adjust mower deck to desired cutting height.

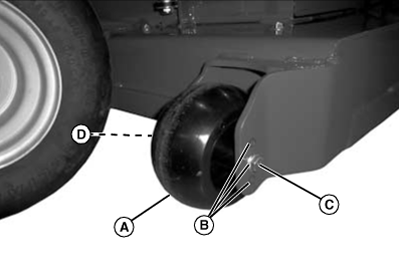

  3. TCAL43610
    TCAL43610-UN-26MAR13

    Adjust anti-scalp wheel (A) to one of three positions (B).

    • Remove cap screw (C) and locknut (D).
    • Adjust wheel up or down so it is approximately 6-13 mm (1/4-1/2 in.) above mowing surface.


  4. Install wheel with attaching hardware.

  5. Adjust all wheels to the same height.

BB87125,0001448-19-20130708
