Using the PTO


Engage PTO

CAUTION: Before engaging mower, make sure that area is clear of bystanders, especially children.

  1. Stand on the operator platform with motion control levers in the neutral position.

  2. Start engine.

  3. Unlock park brake.

  4. Move throttle lever to the 1/2 to 3/4 fast position.

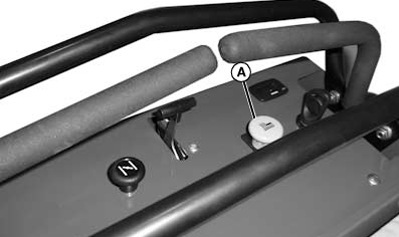

  5. TCAL43614
    TCAL43614-UN-26MAR13

    Pull PTO switch (A) up to engage mower deck.


  6. Move throttle lever forward to the fast position for mowing.


Disengage PTO

  1. Push PTO switch (A) down.

  2. Lock park brake.

BB87125,0001450-19-20130708
