Using Pump Free-Wheel Valves

CAUTION: When the bypass valve is open, the machine will have unrestricted motion.

• Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: Transmission damage may occur if the machine is towed or moved incorrectly:

• Move machine by hand only.
• Do not use another machine to move machine.
• Do not tow machine.

NOTE: The pump free-wheel valves must be fully turned clockwise (closed) during normal machine operation.

When the machine needs to be moved without starting the engine, use the pump free-wheel valves:

1. Lock park brake.

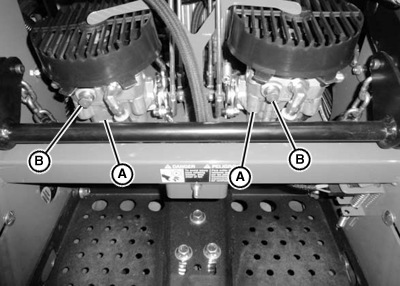

2. NOTE: The pumps (A) are located at the rear of the engine. The free-wheel valves (B) can be accessed by lifting the thigh pad.


   TCAL48037-UN-17SEP13

   Turn both pump freewheel valves (B) counterclockwise approximately 1/2 turn (open position).

---




3. Unlock park brake.

4. Push machine to desired location. Due to hydraulic system drag, machine will move slowly.

5. Lock park brake.

6. Turn pump free-wheel valves (B) on both pumps 1/2 turn clockwise (closed position). Tighten valves to specification.

   Item	Measurement	Specification
   Valve	Torque	11 N·m (100 lb.-in.)
