Transporting Machine on a Trailer

Use a heavy-duty trailer to transport the machine. Trailer must have signs and lights required by law.

NOTE: Trailer capacity must exceed combined machine weight and attachment weight. (See Specifications section in Operator’s Manual).

CAUTION: Use extra care when loading or unloading the machine onto a trailer or truck. Machine wheels can go off the ramp or trailer, causing the machine to tip over.

• To load, back slowly and in a straight line. Keep wheels away from drop-offs and edges.
• Do not use two separate loading ramps. Use a full-width loading ramp at least 30 cm (12 in.) wider than machine to keep caster wheels from going off the ramp edge.
• Use a trailer with sides.

1. Park trailer on level surface.

2. Raise mower deck to the transport position.

3. Back machine onto heavy-duty trailer with full-width ramp.

4. Stop engine and lock park brake.

5. Lower mower deck completely.

6. Remove key.

7. Turn fuel shutoff valve to the off position.

8.

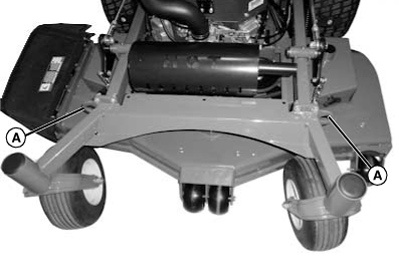

   TCAL43631-UN-26MAR13

   Fasten front of machine at both sides of the frame at points (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

---




9.

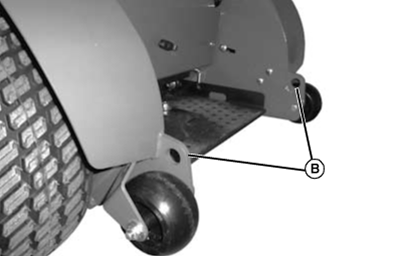

   TCAL43632-UN-26MAR13

   Fasten rear of machine at both sides of frame at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

---
