Servicing HD Air Cleaner Elements

IMPORTANT: Dirt and debris can enter the engine when removing the air cleaner elements. Service elements only at prescribed intervals.

Servicing Primary Air Cleaner Element

1. Park the machine safely. (See Park Safely in the Safety section.)

2. Allow engine to cool.

3.
   TCAL43651-UN-26MAR13

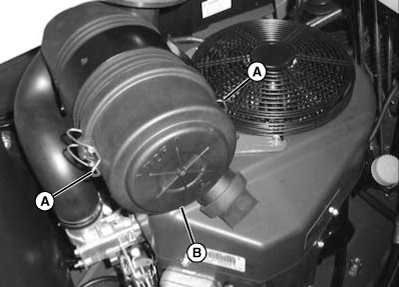

   Release latches (A) and remove air cleaner canister cover (B).

---




4. NOTE: Inspect secondary air cleaner element. Replace if necessary.


   TCAL43652-UN-26MAR13

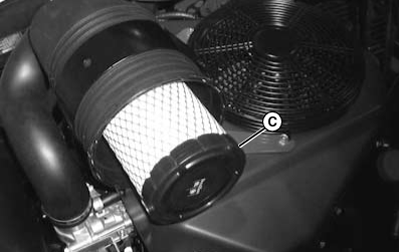

   Remove and discard primary element (C). Replace with new primary element.

---




5. Install air cleaner canister cover with rubber dust unloading valve pointing downward.

Servicing Secondary Air Cleaner Element

1. Remove primary air cleaner element.

2.
   TCAL43653-UN-26MAR13

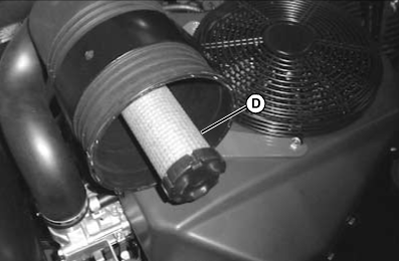

   Remove and discard secondary air cleaner element (D). Install new secondary element.

---




3. Install primary air cleaner element.

4. Install air cleaner canister cover with rubber dust unloading valve pointing downward.
