Checking Hydraulic Oil Level

IMPORTANT: Check oil level in reservoir tank when oil is cold.

Do not overfill oil reservoir tank. Oil will expand during operation and could overflow.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Lift thigh pad.

3.

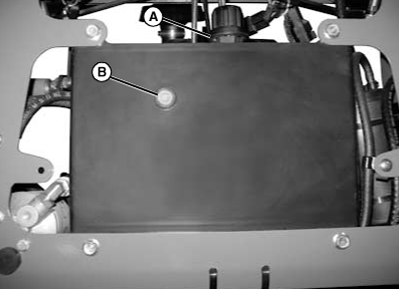

   TCAL43658-UN-26MAR13

   Clean area around the breather cap (A) and remove.

---




4.

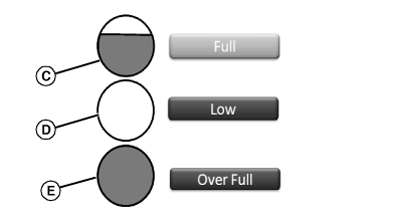

   TCAL43659-UN-26MAR13

   Locate the reservoir sight glass (B) and verify the hydraulic oil level is at the full mark (C):
   • If oil is low (D), add oil to bring oil level no higher than FULL mark.
   • If oil is above full mark (E), drain oil to proper level.



---




5. Lower thigh pad.
