Adjusting Park Brake


Testing Park Brake

  1. Inflate tires to correct pressures.

  2. TCAL43677
    TCAL43677-UN-26MAR13

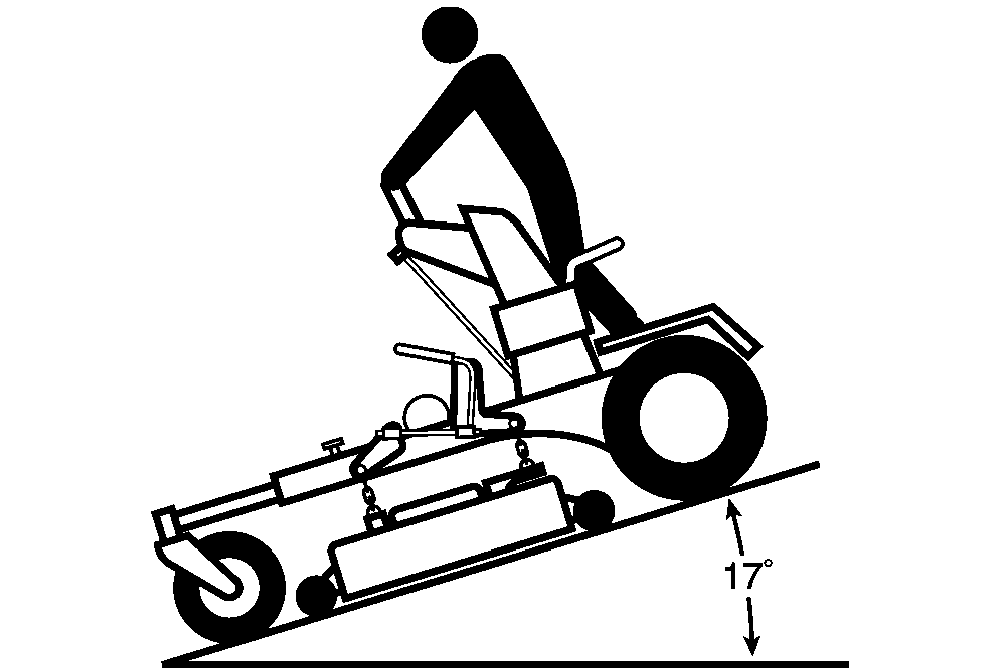

    Stop machine on a maximum 17° slope.


  3. Lock park brake.

    • A properly adjusted park brake must prevent the drive wheels from turning.
    • If the drive wheels turn, a brake adjustment will be necessary.


Adjusting Park Brake

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Unlock park brake.

  3. NOTE: Repeat procedure for both sides of machine.

    TCAL43678
    TCAL43678-UN-26MAR13

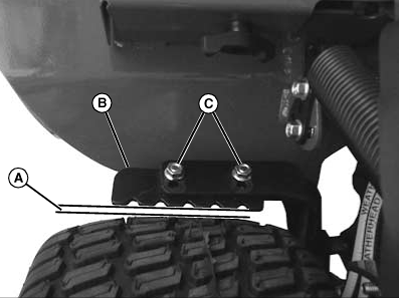

    Loosen two cap screws (C) that retain brake pawl (B).


  4. Adjust distance (A) between pawl and tire to specification.

    ItemMeasurementSpecification
    Brake PawlDistance9.5-13 mm (3/8-1/2 in.)

  5. Tighten brake pawl retaining cap screws (C).

  6. Test park brake. Adjust again, if required.

  7. Release park brake and operate machine to verify tires do not hit brake pawls in the released position.
