Adjust Mower Deck Lift Latch

If the mower deck lift latch does not function properly, the latch spring anchor will need to be adjusted:

• If the mower deck lift lever does not disengage when pulled back, the spring anchor needs to be repositioned in the lower position.
• If the mower deck lift lever does not latch when moved to the raised position, the spring anchor needs to be repositioned in the upper position.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. CAUTION: Do not work near raised mower deck unless it is safely supported.

   Mower blades are sharp. Wrap blades or wear gloves when servicing.

   Before performing any service function, wait for all moving parts to stop turning.

   Disconnect battery or remove spark plug wire before making repairs.

   Place blocks under the outer edges of the mower deck.

3. Lower the mower deck onto the blocks.

4.

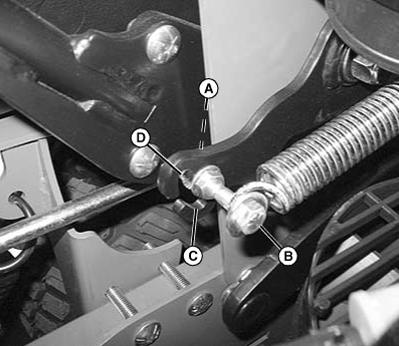

   TCAL43679-UN-26MAR13

   Loosen nut (A), and reposition the spring anchor (B) as needed:
   • If the mower deck lift lever does not disengage when pulled back, the spring anchor needs to be repositioned in the lower position. (C).
   • If the mower deck lift lever does not latch when moved to the raised position, the spring anchor needs to be repositioned in the upper position (D).



---




5. Tighten nut (A).

6. Raise the mower deck, and remove the blocks.
