Checking for Bent Mower Blades

CAUTION: Blades are sharp. Always wear gloves when handling blades or working near blades.

Replace blades if defective. Never straighten or weld them.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Raise mower deck to highest position to access blades.

3.

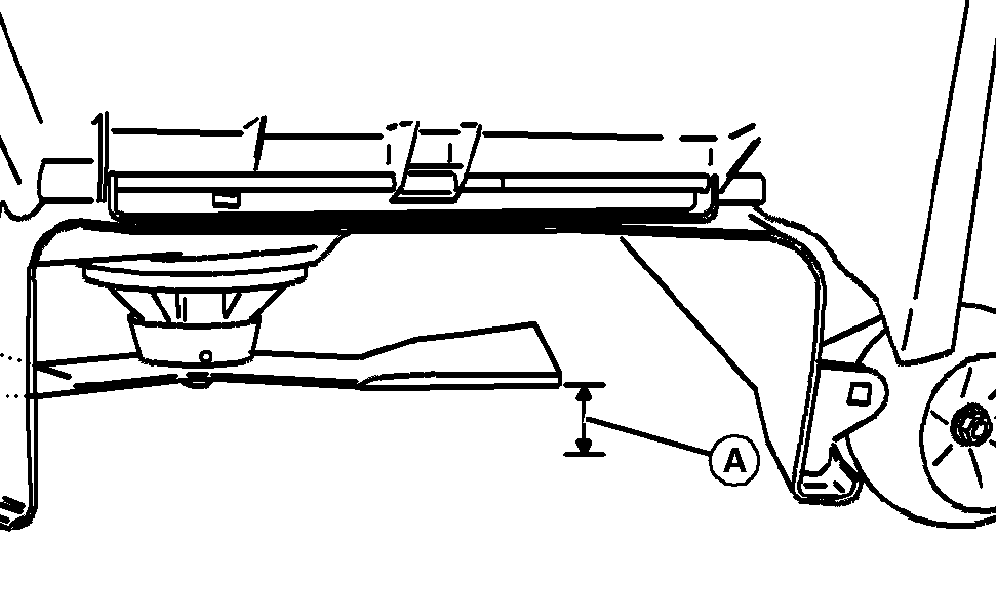

   TCAL43685-UN-26MAR13

   Mower deck with side discharge used for illustration.

   Measure distance (A) between blade tip and flat ground surface.

---




4. Rotate blade 180° and measure distance between other blade tip and flat ground surface.

5. Install new blade if the difference between the two measurements is more than specification.

   Item	Measurement	Specification
   Blade	Distance	3 mm (1/8 in.)

6. Repeat for all blades.
