Replacing Fuse

The electric start circuit is protected by a 20-amp fuse.

IMPORTANT: Help prevent machine circuit damage. Make sure replacement fuse is the correct size.

  1. Locate and replace faulty electric start fuse located near the starter motor.

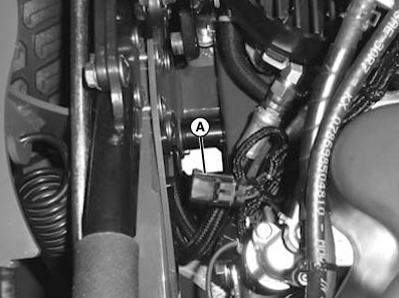

  2. TCAL43698
    TCAL43698-UN-26MAR13

    Remove fuse holder cover (A).


  3. Check metal clip in fuse window. Discard fuse if clip is broken.

  4. Install new 20-amp fuse in socket.

  5. Install fuse holder cover. Ensure that plastic tab is securely fastened.
