Removing and Installing Rear Drive Wheels

Removing

1. Park machine safely. (See Parking Safely in the Safety section.)

2. CAUTION: The machine may fall or slip from an unsafe lifting device or supports, injuring anyone beneath it.

   • Remove key before raising machine.
   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto stable supports or jack stands and block wheels before servicing.




   TCAL43699-UN-26MAR13

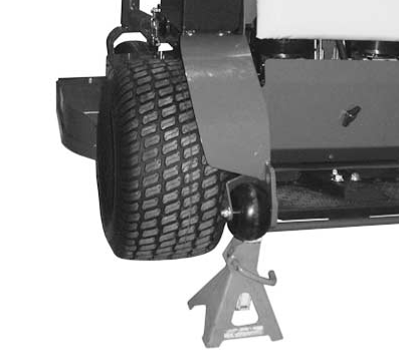

   Raise rear of machine with safe lifting device.
   • Use wheel chocks to block the front wheels.
   • Support with jack stands.



---




3.
   TCAL43700-UN-26MAR13

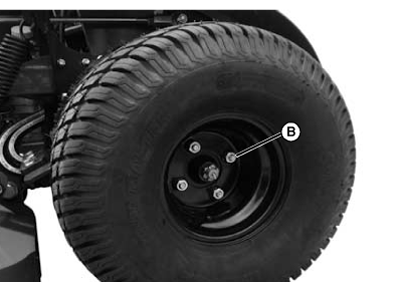

   Remove wheel nuts (B).

---




4. Remove wheel.

Installing

1. Install new wheel.

2. Install and tighten wheel nuts alternately to specification.

   Item	Measurement	Specification
   Rear Wheel Nut	Torque	108-122 N•m (80-90 lb.-ft.)

3. Lower machine.
