Tightening Rear Drive Wheel Hardware

1. Tighten rear wheel nuts in an alternate pattern.

2.

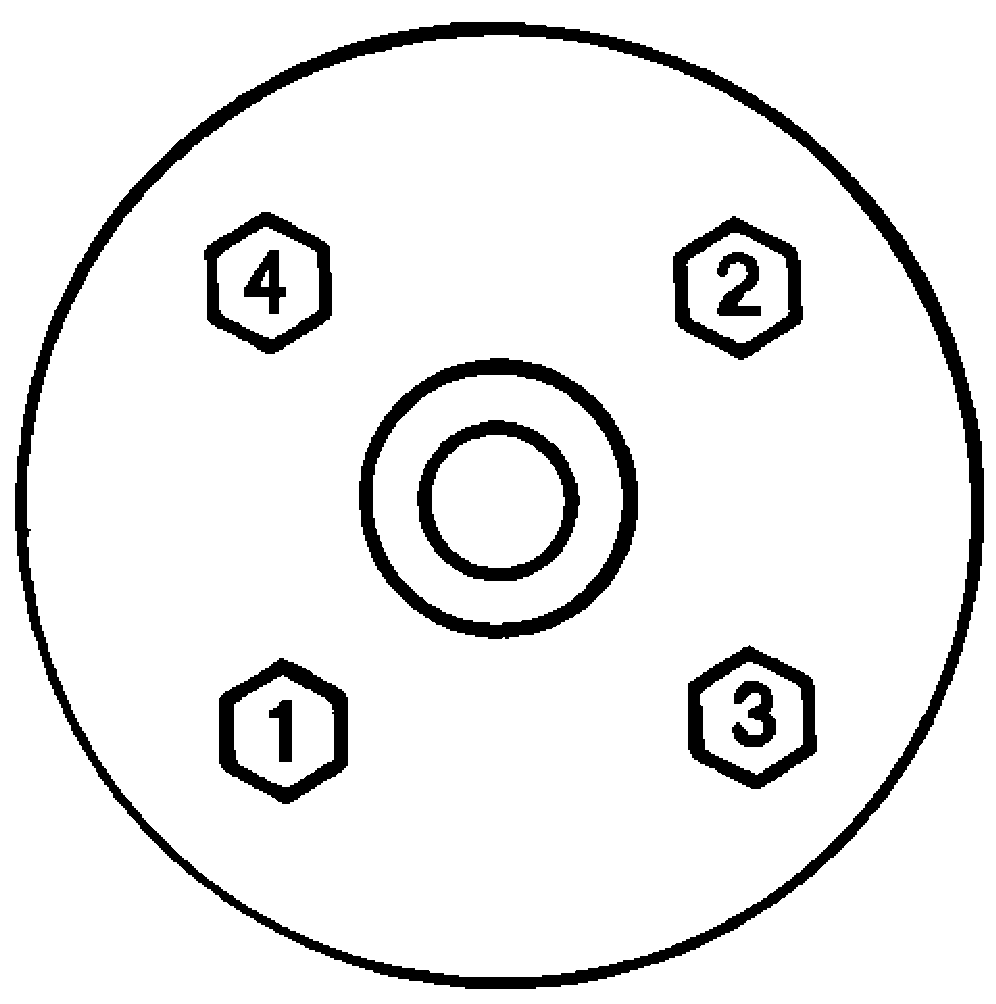

   TCAL43701-UN-26MAR13

   Tighten wheel nuts in numbered sequence shown for safe wheel installation. Tighten alternately until recommended torque value is reached.

   Item	Measurement	Specification
   Rear Wheel Nut	Torque	108-122 N•m (80-90 lb.-ft.)

---
