Checking Hydraulic Oil Level

IMPORTANT: Check oil level in reservoir tank when oil is cold.

Do not overfill oil reservoir tank. Oil will expand during operation and could overflow.

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Lift thigh pad.

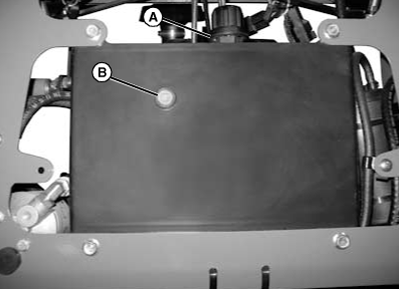

  3. TCAL43705
    TCAL43705-UN-26MAR13

    Clean area around the breather cap (A) and remove.

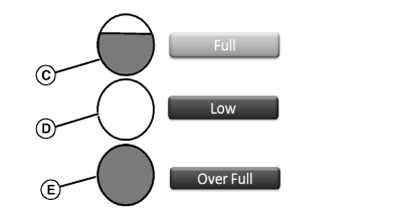

  4. TCAL43706
    TCAL43706-UN-26MAR13

    Locate the reservoir sight glass (B) and verify the hydraulic oil level is at the full mark (C):

    • If oil is low (D), add oil to bring oil level no higher than FULL mark.
    • If oil is above full mark (E), drain oil to proper level.


  5. Lower thigh pad.

BB87125,000149F-19-20130918
