Replacing Fuel Filter (Kohler)

CAUTION: Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.
• Keep fuel away from flames or sparks.
• Shut off engine before servicing.
• Cool engine before servicing.
• Work in a well-ventilated area.
• Clean up spilled fuel immediately.

IMPORTANT: When installing a new fuel filter, the filter arrow must be pointed in the direction of the fuel flow.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Allow engine to cool.

3.
   TCAL47861-UN-29JUL13

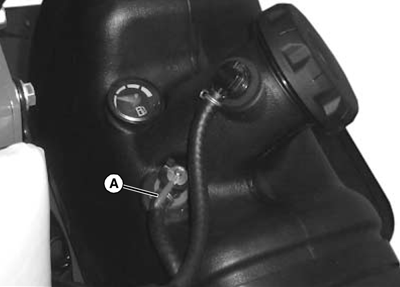

   Turn fuel shutoff valve (A) to OFF position.

---




4.
   TCAL47862-UN-29JUL13

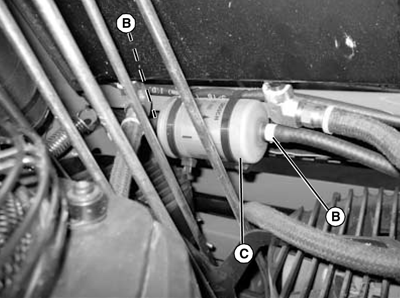

   Slide hose clamps (B) away from fuel filter (C).

---




5. Place drain pan under hoses to catch any fuel that may be left in the hoses.

6. Disconnect hoses from fuel filter (C).

7. Install new fuel filter (C).

   • Make sure fuel filter is installed with arrow pointing in direction of fuel flow.



8. Connect hoses to new fuel filter (C).

9. Install hose clamps (B).

10. Install new cable ties securing the filter to the frame.
