Lubrication

• Set park brake, stop engine, and remove the key.
• Clean grease fittings using a rag.
• Connect grease gun to fitting and pump until grease begins to ooze from the bearings.
• Wipe off excess grease.
• Do not use spray lube of any kind on choke and/or throttle cables.

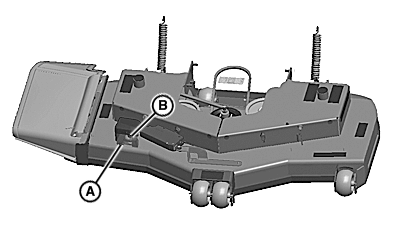

Lubricating Mulch-On-Demand (MOD) Baffle Pivot Bushing.

TCAL48057-UN-21OCT13

A - Grease Fitting

B - Pivot Shield Access Hole

NOTE: There is an access hole in the pivot shield (B) and grease fitting (A) is accessible directly from the front.

• On right front of machine, lubricate MOD pivot shaft grease fitting (A).

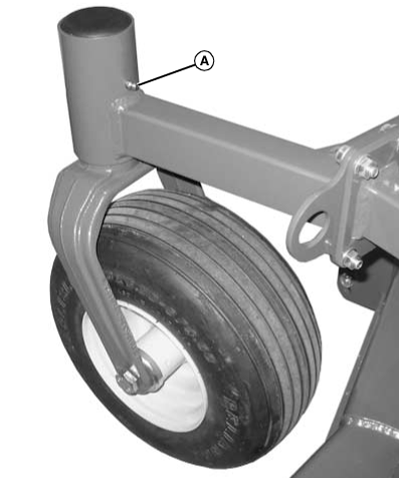

Lubricating Front Caster Spindles and Wheels

TCAL43634-UN-26MAR13

• Lubricate spindle grease fitting (A) on each front caster spindle.

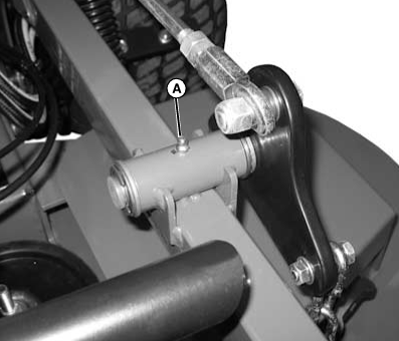

Lubricating Deck Lift Pivot Points

TCAL43635-UN-26MAR13

• Lubricate two front deck lift pivot lubrication fittings (A).

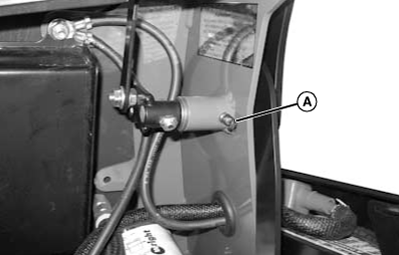

Lubricating Park Brake Linkage

TCAL43636-UN-26MAR13

• Lubricate park brake lubrication fitting (A).
