Transmission and Hydraulic Oil

IMPORTANT: Machine is filled with John Deere HY-GARD™ (J20C) Transmission/Hydraulic Oil at the factory. DO NOT mix oils. DO NOT use type “F” automatic transmission fluid.

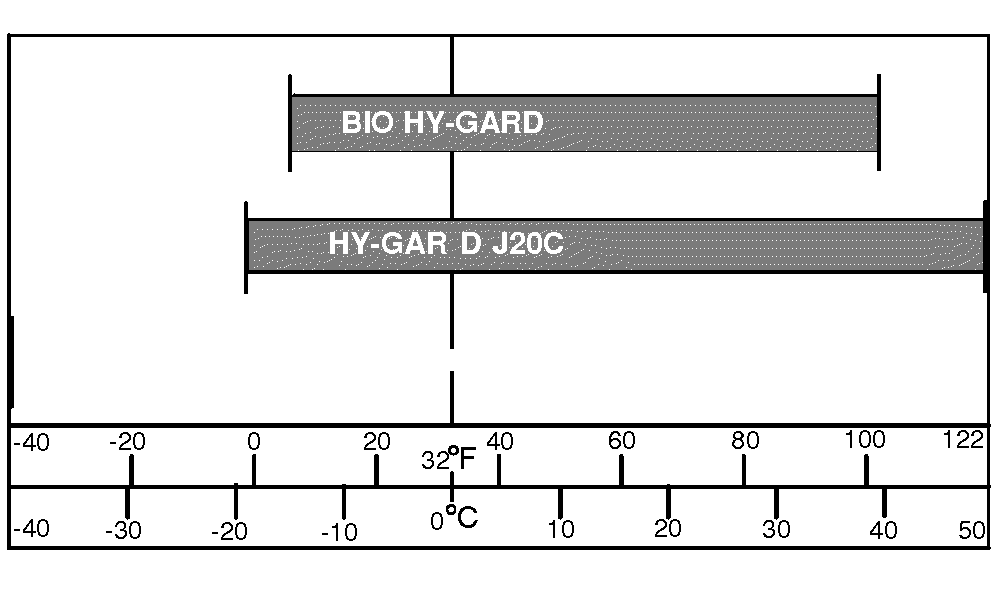

TCAL41627-UN-22JAN13

Use oil viscosity based on the expected air temperature range during the period between oil changes.

John Deere J20C HY-GARD Transmission/Hydraulic Oil is recommended.

Use John Deere BIO HY-GARD™ oil when a biodegradable fluid is required.
