Controls

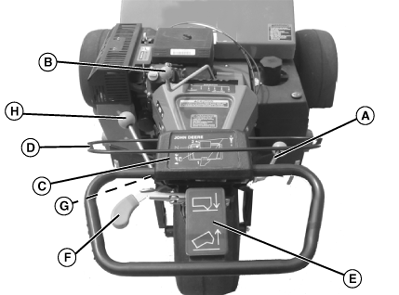

TCAL41046-UN-18JAN13

A - Park Brake Lever

B - Gear Selector

C - Operator Controls Decal

D - Operator Presence Bail

E - Aerator Engagement Switch

F - Throttle Lever

G - Choke Lever

H - Travel Clutch Lever

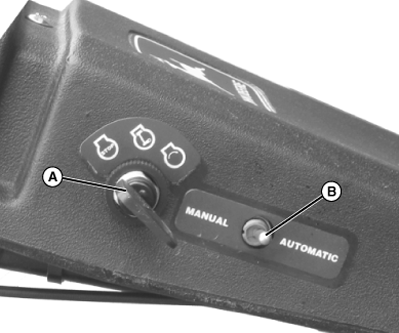

TCAL41047-UN-18JAN13

A - Key Switch

B - Manual/Automatic Switch

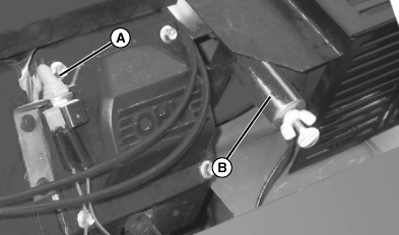

TCAL41048-UN-18JAN13

A - Throttle Solenoid Switch

B - Throttle Solenoid
