Adjusting Holes-Per-Square-Foot Dimension

Holes per square foot are determined by the ground speed of the machine and the tine holder used.

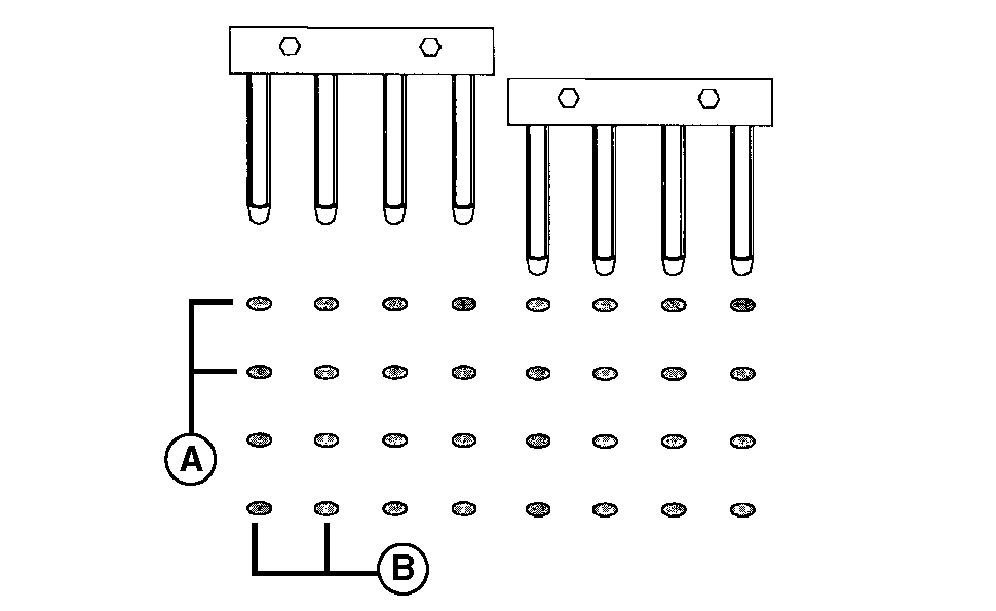

TCAL41050-UN-18JAN13

• Increasing the ground speed will reduce the number of holes per square foot, but will increase forward hole spacing (A) and increase the square feet aerated per hour.
• Changing from 4x holders to mini tine holders will decrease the tine hole spacing (B) and increase the number of holes per square foot.

Ground speed is determined based on the number of holes desired per square foot. Before beginning operation, take machine to practice area to determine needed speed to provide desired holes per square foot.
