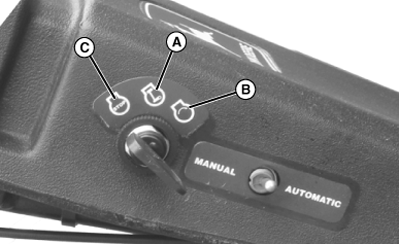

Using Key Switch

TCAL41052-UN-18JAN13

1. Turn the key to the ON position (A) to allow the aeration head to be raised or lowered without the engine running.

2. Turn the key to the START position (B) to start the machine.

3. Turn the key to the STOP position (C) to stop the engine or to hold the aeration head in a lowered position.
