Using Park Brake

IMPORTANT: Avoid damage! Unlock park brake before engaging clutch lever to begin forward motion. Alarm sounds if travel clutch is engaged while park brake is locked. If machine travels with brake locked, damage to brake occurs.

TCAL41056
TCAL41056-UN-18JAN13

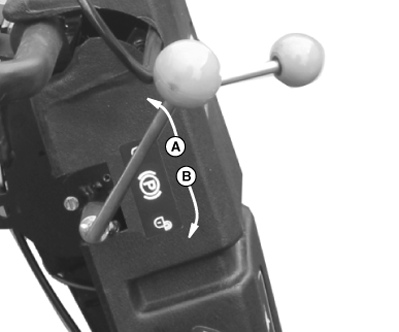

  1. Lock the park brake by rotating the lever toward the operator station (A).

  2. Unlock the park brake by rotating the lever toward the engine (B).
