Using Travel Clutch Lever

CAUTION: Avoid injury! Machine movement starts quickly if forward or reverse travel is started with throttle speed set at high rpm.

  • Begin machine travel with throttle at low rpm. Adjust rpm after machine begins travel.

IMPORTANT: Avoid damage! Unlock park brake before engaging clutch lever to begin forward motion. Alarm sounds if travel clutch is engaged while park brake is locked. If machine travels with brake locked, damage to brake occurs.

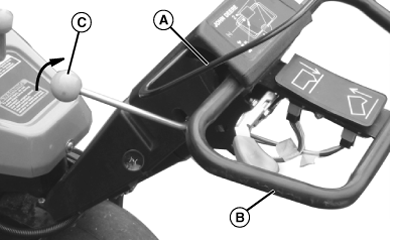

TCAL41057
TCAL41057-UN-18JAN13

  1. Hold bail (A) to handlebar (B).

  2. Start engine. Position throttle for low engine rpm.

  3. Unlock park brake.

  4. Select travel gear.

  5. Pull clutch lever (C) toward the operator to engage drive clutch.

  6. NOTE: If alarm sounds when clutch lever is engaged, raise aeration head completely and release bail to stop travel. Unlock park brake before continuing.

    Machine begins travel motion.

  7. Adjust throttle to higher engine rpm as necessary.

  8. Release bail (A) to stop travel. Travel clutch lever must return to disengage position. Machine must stop travel motion.
