Starting The Engine

IMPORTANT: Avoid damage! Aeration head must be fully raised before starting engine or machine travel. If head is not fully raised, tine action begins.

TCAL41063-UN-18JAN13

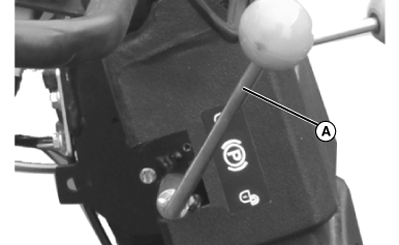

1. Lock park brake (A).

2. Raise the aeration head completely.

3.
   TCAL41064-UN-18JAN13

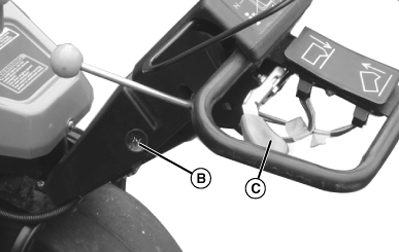

   Pull choke (B) out to set choke at closed position.

---




4. Set throttle lever (C) midway between slow and fast positions.

5. Turn key switch to the start position. Release key to run position when engine starts.

6. Adjust choke position:

   • For a warm engine: Move choke to open position after engine has started.
   • For a cold engine: Gradually return the choke to the open position after allowing the engine to warm up.
