Stopping The Aerator

  1. IMPORTANT: Avoid damage! Always raise the aeration head before stopping the machine forward motion.

    TCAL41075
    TCAL41075-UN-18JAN13

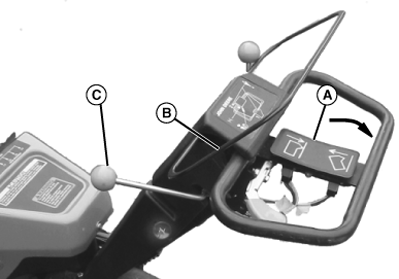

    To stop aeration mechanism, push aerator engagement switch (A) toward the operator. Engaging the switch raises the aeration head and disengages the drive belt.


  2. NOTE: When bail (B) is released at any time, the drive clutch and lever (C) automatically disengages, and the aeration head stops rotating and fully rises.

    Release operator presence bail (B) to stop machine travel.
