Selecting The Correct Tine Holder

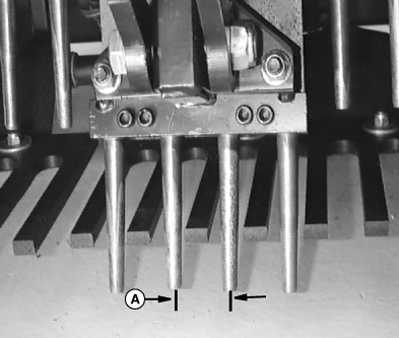

TCAL41077-UN-18JAN13

There are two sizes of tine holders available for the AERCORE 800 to provide different hole spacing (A) depending on customer need:

• 4X holder has hole spacing of 51 mm (2 in.) and can be used with tine sizes 10 mm (3/8 in.), 12.7 mm (1/2 in.), and 16 mm (5/8 in.) tines in either solid or tubular style.
• Mini-Tine holder is used for holding mini-tines only and has a hole spacing of 35.6 mm (1.4 in.).
