Removing and Installing Core Deflectors

  1. NOTE: Core deflectors must be used with 4X tine holders. The mini-tine holder does not use a core deflector. Deflectors can be removed from or installed to the tine holders while the tine holder is installed on the machine or removed from the machine.

    CAUTION: Avoid injury! Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operators station to adjust or service machine.

    Park the machine safely. (See Parking Safely in the SAFETY section.)

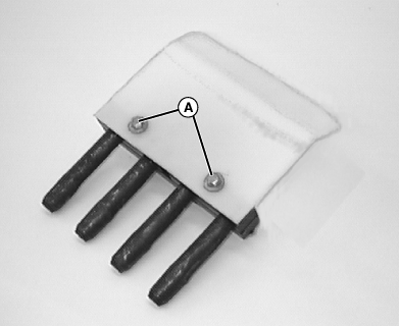

  2. TCAL41082
    TCAL41082-UN-18JAN13

    Remove hardware (A) from the backside of the tine holder.


  3. Install new core deflector so the curved part points rearward when installed on the machine.

  4. Secure each deflector with two flat washers, lock washers and bolts. Tighten until snug. Do not overtighten.

OUO1082,00065AD-19-20150611
