Checking Battery Electrolyte Level

NOTE: Add only distilled water to replace battery electrolyte.

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Remove battery cell caps. Make sure that cap vents are not plugged.

3.

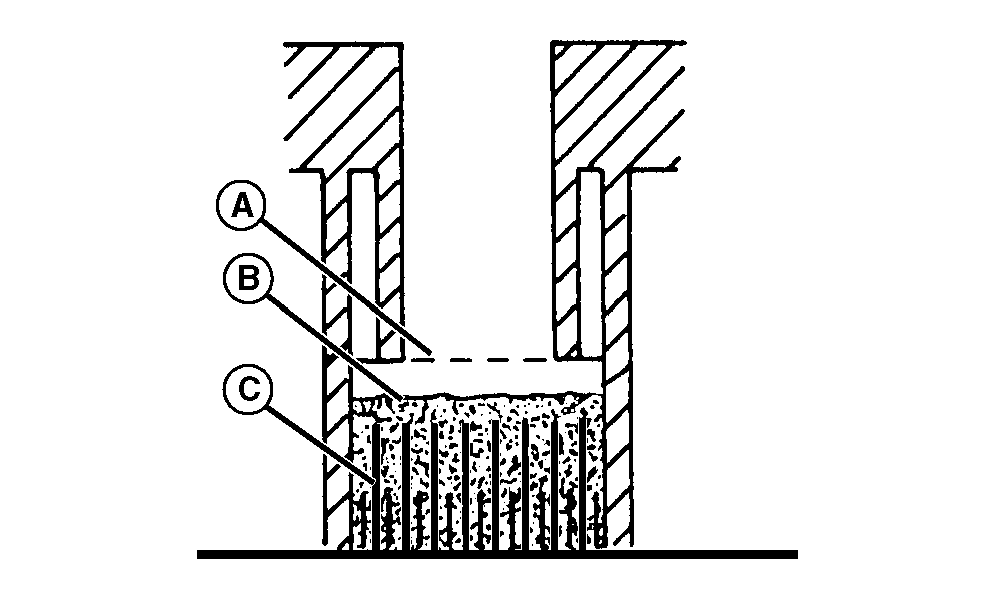

   TCAL41096-UN-18JAN13

   Check electrolyte level. Electrolyte (B) must be halfway between bottom of filler neck (A) and top of plates (C).

---




4. IMPORTANT: Avoid damage! Do not overfill battery. Electrolyte can overflow when battery is charged and cause damage.

   Add only distilled water if necessary.

5. Install battery cell caps.
