Replacing Fuses

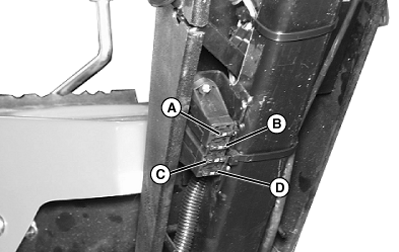

NOTE: Four fuses (A) are located under the steering column.

TCAL41101-UN-18JAN13

A - 10 amp spare fuse location

B - 10 amp fuse for ignition and throttle solenoid

C - 10 amp fuse for traction clutch

D - 10 amp fuse for Lift/Lower circuit

• Replace electrical fuses with fuses of the same amperage to avoid possible damage to system.
