Removing Divider Seals

NOTE: Divider seals should be removed to remove the tine ram drive belts and to clean the flex-links properly.

TCAL41113
TCAL41113-UN-18JAN13

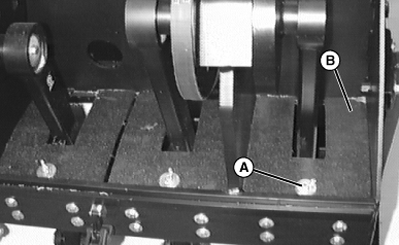

  1. Remove wing nut (A) and washer to remove seal (B).

  2. Replace seal and install hardware.

OUO1082,00065D1-19-20130221
