Adjusting Tire Scraper

NOTE: The dimension between the tire and the scraper should be maintained to specified clearance.

TCAL41114
TCAL41114-UN-18JAN13

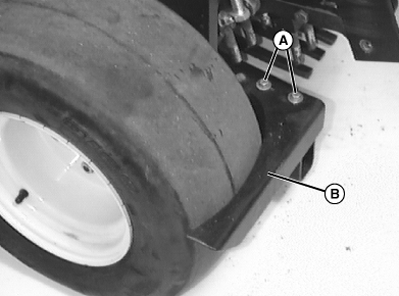

  1. Loosen two bolts (A) and move scraper (B) to desired clearance.

    ItemMeasurementSpecification
    Tire ScraperClearance3.2 mm (0.125 in.)

  2. Repeat for other tire as needed.
