Adjusting Aeration Drive Belt

  1. Remove shield on right side of machine.

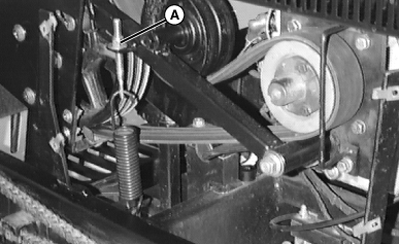

  2. TCAL41119
    TCAL41119-UN-18JAN13

    Tighten nut (A) to increase belt tension.


  3. Loosen nut (A) to decrease belt tension.

OUO1082,00065D6-19-20130215
