Adjusting Tining Action

NOTE: For best hole quality, tining action should begin as soon as coring head starts to lower to the ground and should continue as raising until stopping at top position.

  1. Remove aerating head cover and cover on right side of machine.

  2. TCAL41134
    TCAL41134-UN-18JAN13

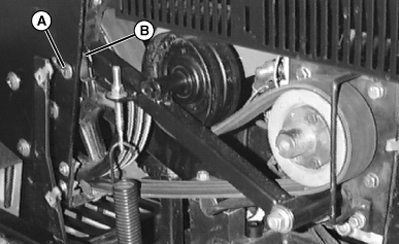

    Loosen bolt (A) and move roller assembly (B) to rear of machine to allow tining action to start sooner as aeration head is lowered.


  3. Move roller assembly (B) toward the engine if tining action continues when aerating head reaches top position.

  4. Install covers.

OUO1082,00065DA-19-20130215
