Removing Tine Drive Belt Pulleys

IMPORTANT: Avoid damage! Aeration head flex-links are timed. Timing marks (A) on both flywheel pulleys must line up with reinforcement bracket edges (B) when assembled.

NOTE: To complete the removal of the pulleys, two 3/4 x 3-1/2 in. machine bolts with nuts and lock washers are required.

Bolts holding connecting rods to belt pulleys are left-hand threaded. Refer to the decal on the arm indicating direction of thread.

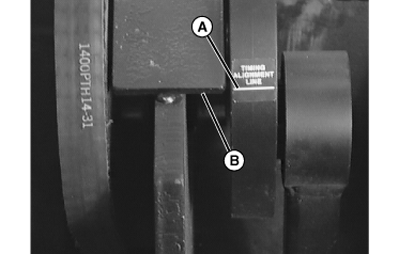

TCAL41146
TCAL41146-UN-18JAN13

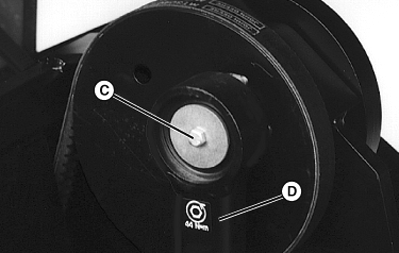

TCAL41147
TCAL41147-UN-18JAN13

  1. Remove the bolts (C) and washers securing the connecting rods to the pulley.

  2. Remove the connecting rods (D) on both sides of the pulleys.

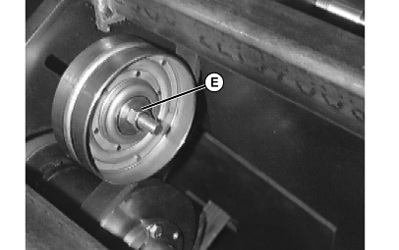

  3. TCAL41148
    TCAL41148-UN-18JAN13

    Loosen the nut (E) securing the belt tensioner sheave and remove the belt from the belt pulley.

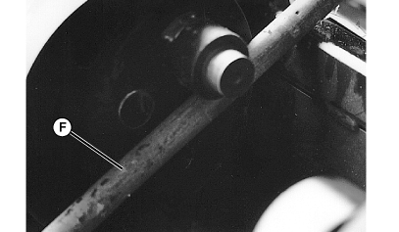

  4. TCAL41149
    TCAL41149-UN-18JAN13

    Place a metal bar (F) underneath the mount for the connecting rod to prevent the belt pulley from rotating while performing the next step.

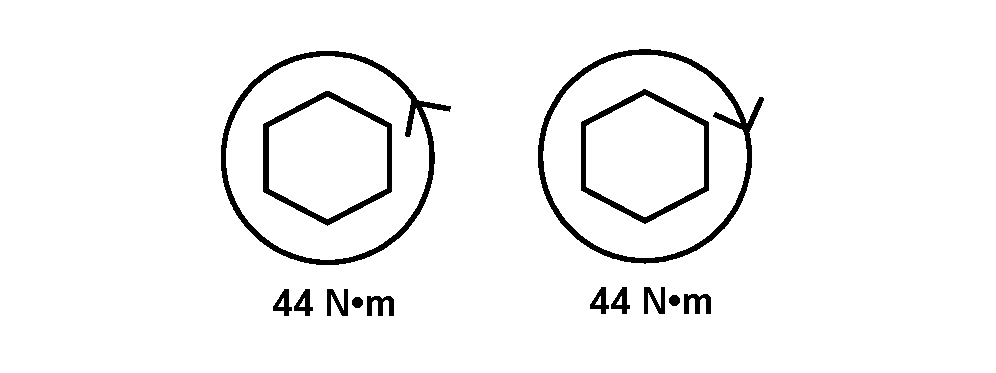

    TCAL41150
    TCAL41150-UN-18JAN13


  5. IMPORTANT: Avoid damage! Decals on each connecting rod indicate direction of turn when removing the pulley.

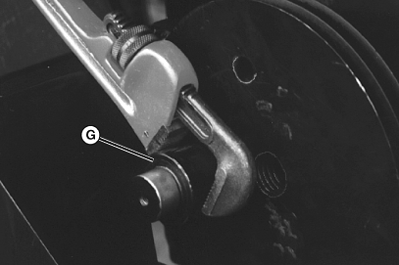

    TCAL41151
    TCAL41151-UN-18JAN13

    Use a pipe wrench to loosen the pulley on the opposite side where the pipe is placed. Place wrench on bushing (G) welded to pulley. Unthread the pulley and remove.


  6. Remove the bar used to hold the pulley in place.

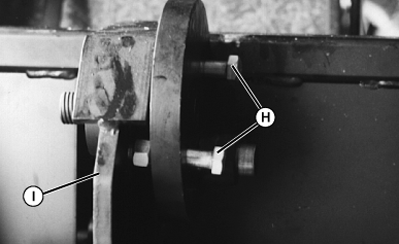

  7. TCAL41152
    TCAL41152-UN-18JAN13

    Install two 3/4 x 3-1/2 in. machine bolts (H) with lock washers and nuts to the remaining pulley through existing holes in pulley.


  8. Tighten them equally to apply pressure to the center plate. As the bolts are tightened, the pulley and pulley shaft assembly is forced from the center plate (I).

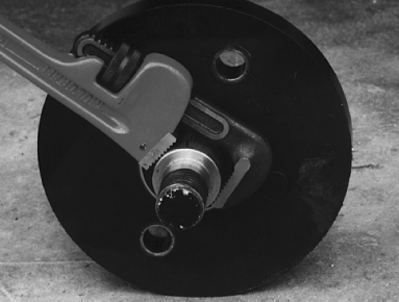

  9. TCAL41153
    TCAL41153-UN-18JAN13

    Place the removed pulley and shaft assembly in a vise. Remove the shaft from the pulley using a pipe wrench.


  10. Remove snap ring and bearing from machine. Perform necessary service.
