Adjusting Drive Chain

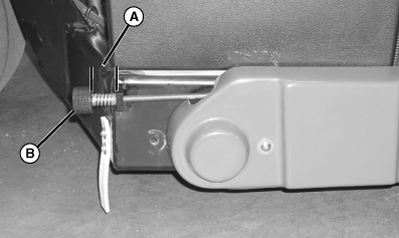

TCAL41158-UN-18JAN13

1. Adjust measurement (A) to specification.

Item	Measurement	Specification
Drive Chain Adjustment	Distance	1-1/4 in

• If measurement (A) is more than 1-1/4 in., turn knob (B) clockwise to decrease length.
• If measurement (A) is less than 1-1/4 in., turn knob (B) counterclockwise to increase length.
