Adjusting Cutting Depth

NOTE: The verticutter is capable of cutting to a maximum depth of 1 3/4 in. when used alone.

TCAL41159
TCAL41159-UN-18JAN13

TCAL41160
TCAL41160-UN-18JAN13

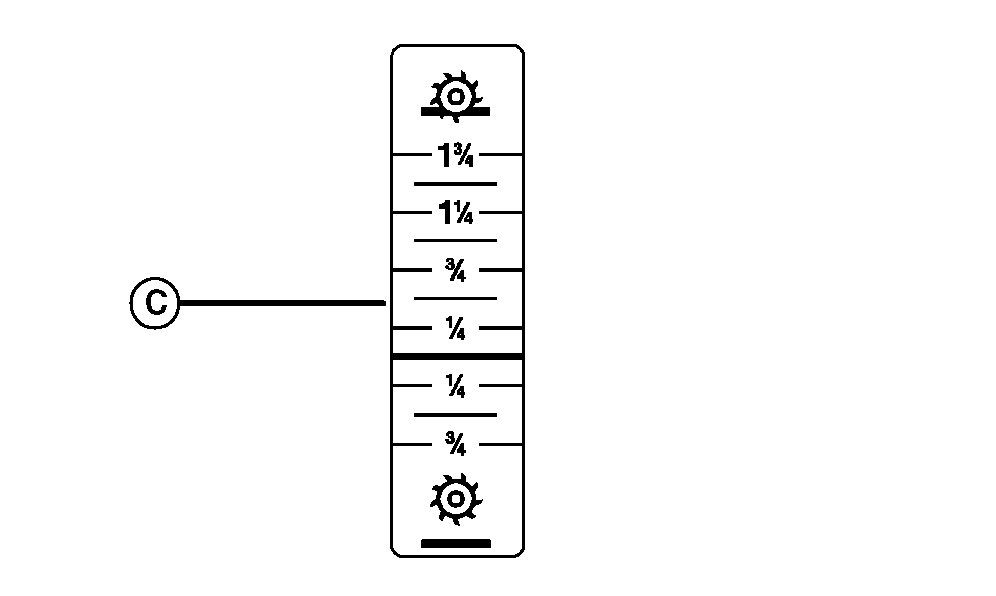

Labels located on the inside of verticutter frame.

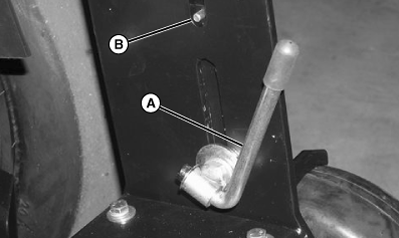

  1. Loosen depth adjustment handles (A).

  2. Adjust to desired depth using pins (B) and labels (C).

  3. Tighten depth adjustment handles (A).

OUO1082,00065E4-19-20130221
