Lubricating Operator Bail

NOTE: Lubricate every 100 hours or seasonal.

TCAL41163
TCAL41163-UN-18JAN13

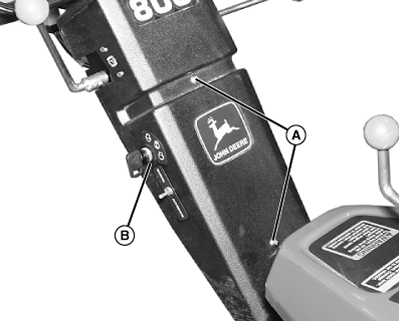

  1. Remove cover from steering handle by removing two screws (A) and plastic nut (B) at key switch.

  2. TCAL41164
    TCAL41164-UN-18JAN13

    Lubricate operator bail at two grease points (C) with two shots of grease.


  3. Install cover and hardware.

OUO1082,00065E8-19-20130215
