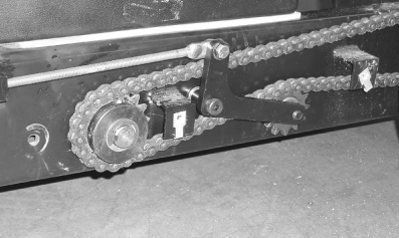

Lubricating Drive Chain

TCAL41165
TCAL41165-UN-18JAN13

  1. Remove chain cover for drive chain on both sides of machine.

  2. Use a chain lubricant every 100 hours or seasonal to prevent rust or corrosion.

  3. Adjust chain tension if necessary.

  4. Install chain covers.

OUO1082,00065E9-19-20130221
