Adjusting Height of Cut Range (QA5)

Adjust front roller brackets for the height of cut range desired.

1. Select height of cut adjustment range by adjusting the position of both front roller brackets.

2.

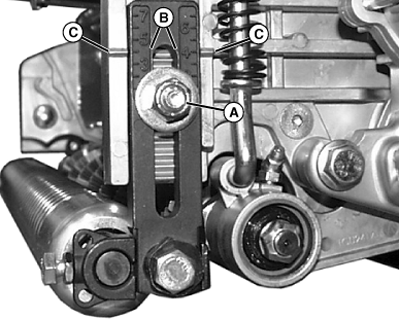

   TCAL41540-UN-22JAN13

   Loosen nut (A) on each roller bracket.

---




3. Alignment of roller bracket (B) and cutting unit frame (C) adjustment marks determine height of cut adjustment range.

4. NOTE: Height of cut range for the 180 E-Cut™ Hybrid and 220 E-Cut™ Hybrid mowers is 0-19 mm (0.00-0.75 in.).

   Refer to chart for desired setting.

   Height of Cut Range (2 in. Front Roller With Out GTC)		Front Roller Setting
   mm	in.
   Not Recommended	Not Recommended	1
   0.0—4	0.00—0.160	2
   1—9.5	0.04—0.37	3
   6—15	0.24—0.60	4
   11—21	0.43—0.83	5
   16—27	0.63—1.06	6
   21—33	0.83—1.30	7

   Height of Cut Range (2 in. Front Roller With GTC)		Front Roller Setting
   mm	in.
   Not Recommended	Not Recommended	1
   0.0—5	0.00—0.20	2
   0—11	0.00—0.43	3
   5—17	0.20—0.67	4
   10—24	0.40—0.94	5
   15—30	0.60—1.18	6
   20—36	0.80—1.42	7
