Raising and Lowering Seat

CAUTION: The seat is heavy and can cause injury if it falls. When performing any service function under the operator seat, make sure the seat stop rod securely locks the seat in the raised position.

Raising the Seat

1. Park machine on a hard, level surface.

2. Stop engine and lock park brake.

3.

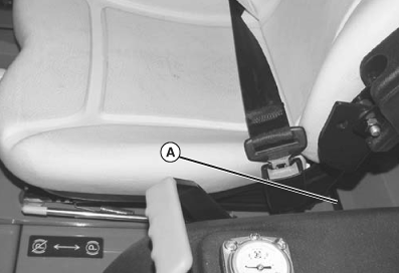

   TCAL43735-UN-21MAR13

   Raise latch handle (A).

---




4.

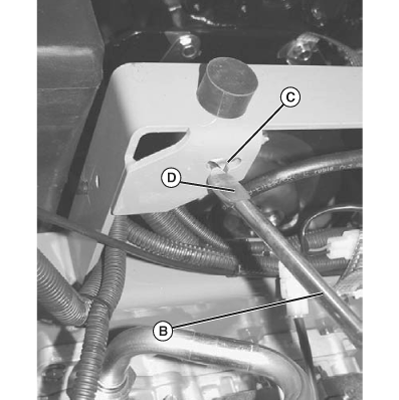

   TCAL43736-UN-21MAR13

   Lift seat, stop rod (B) will travel in slotted frame hole (C).

---




5. When seat is fully raised, make sure stop rod tab (D) securely locks the seat in the raised position.

Lowering the Seat

1. Stand on the left side of the machine.

2. Move operator seat slightly forward and lift stop rod.

3. Slowly lower seat, stop rod will travel in slotted frame hole.
