Using Seat Belt

CAUTION: Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

  1. Sit in seat.

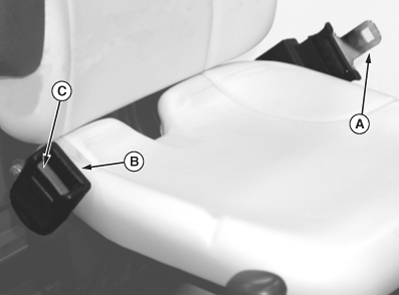

  2. TCAL43738
    TCAL43738-UN-21MAR13

    Pull out seat belt buckle (A) and stretch across your lap in one non-stop motion.


  3. Insert seat belt buckle into latch (B) until it locks.

  4. To release seat belt, press red button (C) until buckle comes out of latch.

DK75838,00006B7-19-20130322
