Using Controls

Park machine safely. (See Parking Safely in the SAFETY section.)


Electric Deck Lift

TCAL43742
TCAL43742-UN-21MAR13

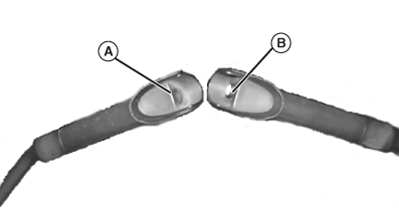

Push button (A) on left motion control lever to raise mower deck.


PTO Shut Off

NOTE: Once PTO has been shut off using the button on the right control lever, the PTO switch must be cycled off and on to engage PTO.

Push button (B) on right motion control lever to shut off PTO.

DK75838,00006B9-19-20141216
