Adjusting Mower Deck Anti Scalp Wheels

NOTE: The flattest cut can be achieved by having all anti-scalp wheels adjusted off the ground. Check anti-scalp wheel adjustments each time the mower deck cutting height is changed.

It is recommended that all anti-scalp wheels be kept off the ground to minimize scuffing.

  1. Inflate tires to correct pressure.

  2. Adjust mower deck to desired cutting height.

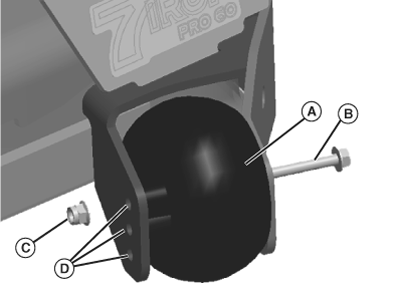

  3. TCAL43744
    TCAL43744-UN-21MAR13

    Adjust anti-scalp wheel (A) to one of three positions (D).

    • Remove screw (B) and locknut (C).
    • Adjust wheel up or down so it is approximately 6–13 mm (1/4–1/2 in.) above mowing surface.


  4. Install wheel with attaching hardware.

  5. Adjust all wheels to the same height.

DK75838,00006BB-19-20130326
