Moving Machine by Hand

CAUTION: When the bypass valve is open, the machine will have unrestricted motion.

• Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: Transmission damage may occur if the machine is towed or moved incorrectly:

• Move machine by hand only.

• Do not use another vehicle to move machine.

• Do not tow machine.

NOTE: The bypass valves must be turned fully clockwise (closed) during normal vehicle operation.

When the machine needs to be moved without starting the engine, use the bypass valves:

1. Lock the park brake.

2. Lift and secure operator seat platform in the raised position.

3.
   TCAL43769-UN-21MAR13

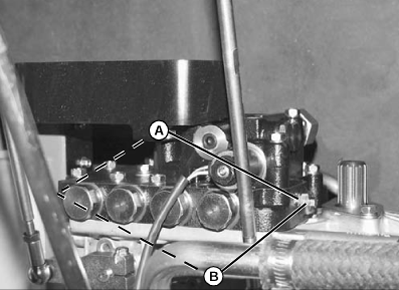

   Loosen the jam nut (B) on each bypass valve using a 17 mm wrench. Use an 10 mm wrench to turn both bypass valves (A) counterclockwise approximately 1/4 turn.

---




4. Lower seat.

5. Unlock park brake.

6. Push machine to desired location. Due to hydraulic system drag, machine will move slowly.

7. IMPORTANT: The bypass valves can be damaged if overtightened. Use care not to overtighten.

   To return to service, tighten both bypass valves to specification. Tighten jam nuts to specification.

   Item	Measurement	Specification
   Bypass Valve	Torque	7 N·m (61 lb-in.)

   Item	Measurement	Specification
   Jam Nut	Torque	20 N·m (173 lb.-in.)
