Transporting Machine

CAUTION: Use extra care when loading or unloading the machine into a trailer or truck.

Close fuel shut-off valve, if your machine is equipped.

IMPORTANT: Transporting a machine on a trailer or on a truck bed at high speeds can result in hood or engine cover raising and possibly coming off machine if not secured.

• Position machine on trailer so hood or engine cover opens from rear of trailer to prevent wind from blowing hood or cover open.

• Secure hood or engine cover with existing machine locks or latches.

• Secure hood or engine cover with tie down straps if no locks or latches exist.

Use a heavy-duty trailer to transport your machine. Trailer must have signs and lights required by law.

  1. Set height-of-cut knob to the transport position.

    • The transport position is the 127 mm (5 in.) cutting height position.

  2. Back machine onto heavy duty trailer with full-width ramp.

  3. Stop engine and lock park brake.

  4. Remove key.

  5. Turn fuel shut off to off position, if your machine is equipped.

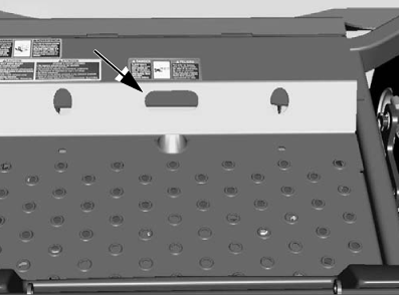

  6. TCAL43771
    TCAL43771-UN-21MAR13

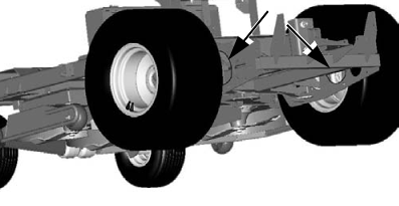

    TCAL43772
    TCAL43772-UN-21MAR13

    Parts have been removed for photo clarity.

    Fasten machine to trailer with heavy-duty straps, chains, or cables. Both front and rear straps must be directed down and outward from machine as shown.

DK75838,00006CE-19-20130326
