Lubricating Front Caster Spindles

CAUTION: To avoid injury, Do not lubricate machine while the engine is running.

NOTE: Do not over lubricate. Excess grease could fall from mower during operation.

Clean grease fitting before lubricating. Replace missing or broken grease fittings immediately.

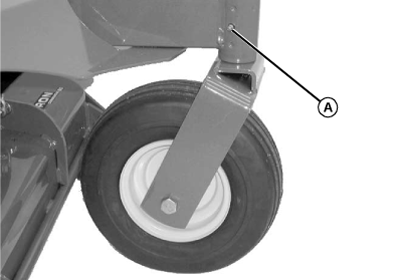

TCAL43775-UN-21MAR13

• Lubricate two front caster spindle grease fittings (A).
