Lubricating Height-of-Cut Ball Detent

IMPORTANT: Before lubricating the ball detent, rotate the cam so that the detent is between two height-of-cut notches on underside of the cam. Failure to do so will make it difficult to adjust the height-of-cut after lubricating.

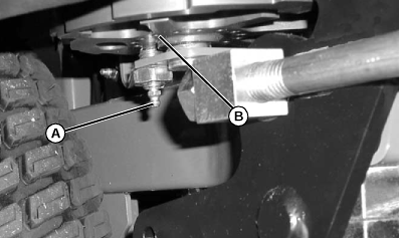

TCAL43777-UN-21MAR13

• Lubricate one deck lift pivot grease fitting (A) between two height-of-cut notches (B).
