Lubricating Mulch-On-Demand (MOD) Baffle Pivot Bushings

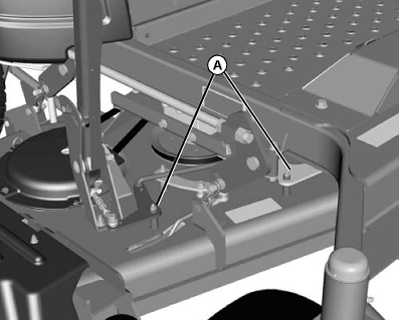

TCAL43784
TCAL43784-UN-21MAR13

  1. On left front of machine, lubricate two grease fittings (A) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease.

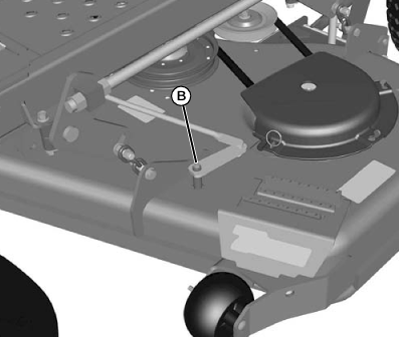

  2. TCAL43785
    TCAL43785-UN-21MAR13

    B - Grease Fitting

    On right front of machine, lubricate grease fitting (B) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease.

DK75838,00006ED-19-20130322
