Replacing Fuel Filter

CAUTION: Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.

• Keep fuel away from flames or sparks.

• Shut off engine before servicing.

• Cool engine before servicing.

• Work in a well-ventilated area.

• Clean up spilled fuel immediately.

IMPORTANT: When installing a new fuel filter, the filter arrow must be pointed in the direction of the fuel flow.

NOTE: Change filter when fuel is low.

  1. Park machine safely. (See Parking Safely in the Safety section).

  2. Allow engine to cool.

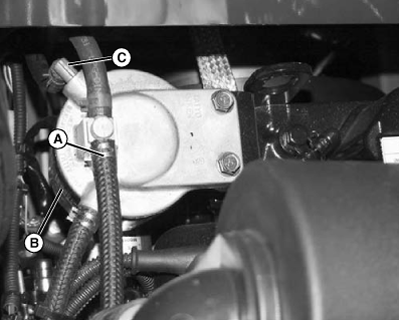

  3. TCAL43804
    TCAL43804-UN-21MAR13

    Slide hose clamps (A) away from fuel filter (B).


  4. Place a drain pan under hose (C) to catch any fuel that may be left in the hoses.

  5. Disconnect hoses from fuel filter.

  6. Install new fuel filter.

    • Make sure fuel filter is installed with arrow pointing in direction of fuel flow.

  7. Connect hoses to new fuel filter.

  8. Install hose clamps.
