Checking Hydraulic Oil Level

IMPORTANT: Hot hydraulic oil will expand and show incorrect oil level. Check reservoir tank:

• When oil is cold.

• Engine not running.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Open hood.

3.
   TCAL43808-UN-21MAR13

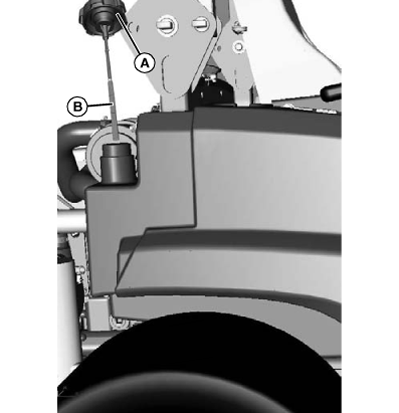

   Unscrew tank cap (A).

---




4. Check oil at dipstick (B).

5.
   TCAL43809-UN-21MAR13

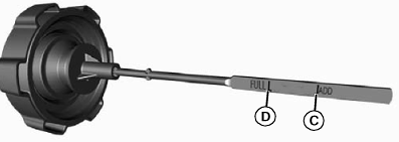

   Oil level should be between minimum (C) and maximum indicators (D).

---




6. If necessary, add oil.

7. Fit tank cap. Lower hood.
