Adjusting Park Brake

IMPORTANT: Due to initial brake wear, the park brake should be checked and adjusted after the first 5 hours of use.

A park brake that is adjusted too tightly could damage the transmission or cause premature brake wear.

  1. Park machine safely. (Refer to Parking Safely in the Safety section.)

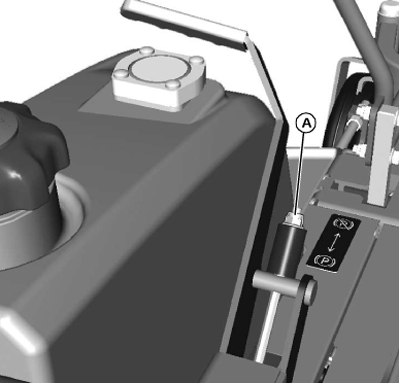

  2. TCAL43826
    TCAL43826-UN-21MAR13

    Seat removed for photo clarity.

    Turn nut (A) clockwise to tighten, or counter clockwise to loosen park brake setting.


  3. Test park brake. Adjust as necessary.

DK75838,000070B-19-20130322
